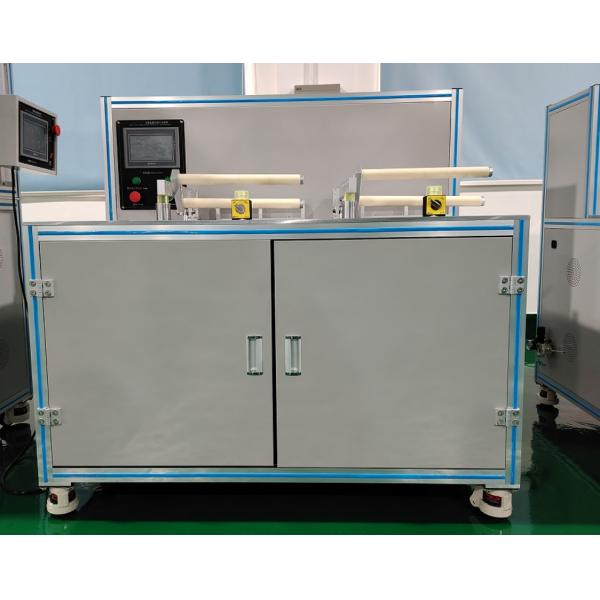

This equipment is dedicated to the water inlet valve anti-siphon performance test, there is a transparent container between the sample and the equipment vacuum machine, the purpose of which is used to collect the siphon test failed to collect the inhalation of the water flow, in order to protect the vacuum machine not to be damaged, through the vacuum system of the equipment to simulate the vacuum state of the water supply pipeline occurs, in order to detect the water inlet valve with or without siphon phenomenon occurs.
ASME A112.18.1-2018 CSA B125.1-18(C) 5.9
| Number of Workstations | Single workstation |
|---|---|
| Test Pressure | 0 ~0.1 PA (adjustable), 0.5% full scale accuracy |
| Pressure Adjustment | Manual control |
| Observation Tube ID | 13 mm |
| Immersion Depth | 13 mm |
| Vacuum Generation | Vacuum pump |
| Test Fixtures | Customized per specification (≥2 pcs each) |
| Timer Range | 0-99.99 (Hours, Minutes, seconds) |
| Dimensions | 1000x1000x1600 mm |
| Power supply | AC220V 50HZ |
| Weight | Approx. 120 kg |
